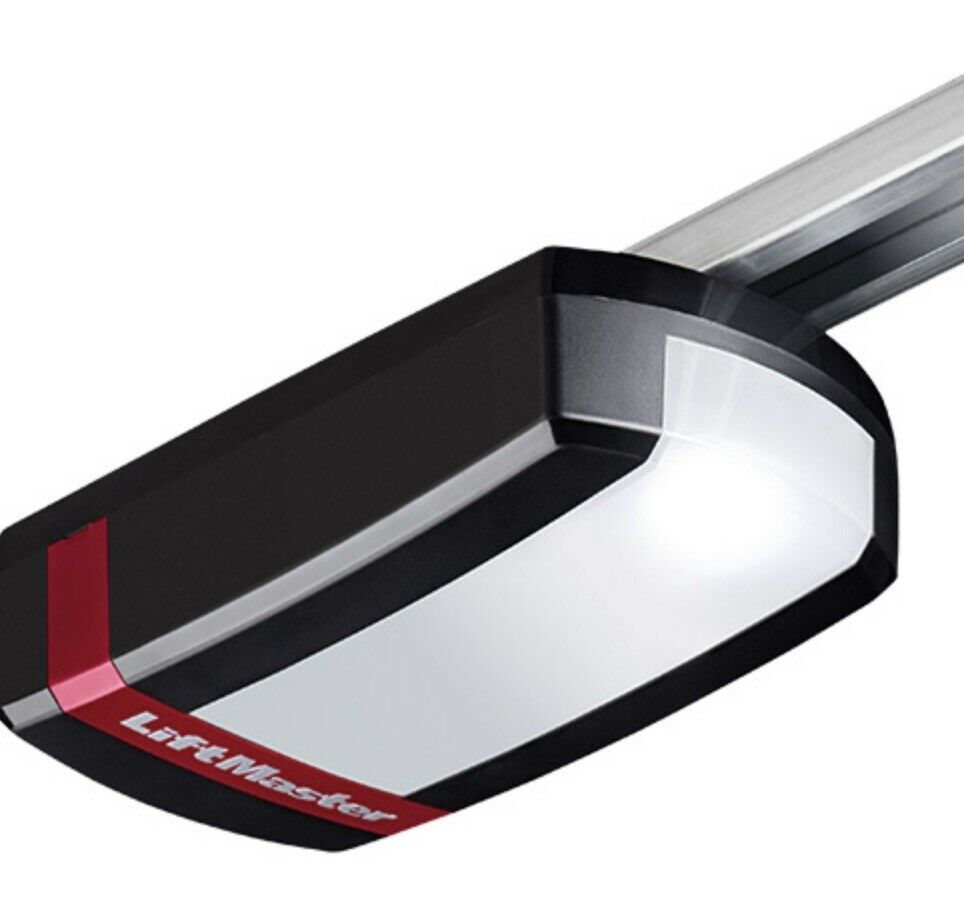

Chamberlain Liftmaster LM60EVF with Three Piece Belt Rail
The compact garage door opener for a wide range of garage doors.
Super-quiet garage door opener including two multi-frequency four channel transmitters TX4EVF and a modern, powerful LED lighting system. For garage doors with door weights up to 100 Kg.
Compatible with MyQ smart-home technology.
Smart
Space-saving design opens up the ceiling.
Belt drive system for powerful performance.
Soft-start and soft-stop for smooth operation.
MyQ mobile app lets users receive alerts and control the opener from anywhere (Internet Gateway 828EV required, sold separately).
Quiet & Reliable
Quiet DC motor eliminates noise and vibrations through the ceiling and provides smooth operation.
Heavy-lifting power operates doors up to 100 Kg.
Maintenance-free belt drive ensures quiet & durable operation.
Warranty motor: 5 years, control board: 5 years, accessories: 2 years.
Secure & Safe
Automatic garage door openers impede unauthorised access to the garage.
Timer-to-close automatically closes the door after a preset amount of time (when safety sensors connected, sold separately).
Evolution radio (security+ 2.0) sends a new code with every remote click.
Automatic force setting & obstacle detection.
Super-quiet garage door opener including two multi-frequency transmitters and a modern, powerful LED lighting system. For doors with door weights up to 100 kg. Compatible with MyQ smart-home technology.
TECHNICAL DATA
- Voltage IN 230-240 V, 50/60 Hz
- Motor voltage 24V DC
- Max pull force 600 N
- Stand-by power 0,8 W
- Drive type Belt
- Gate height Adjustable up to 2,5 m
- Speed 160 mm per second
- Lighting LED turns on with activation, turns off 2.5 minutes after operation
- Obstacle detection Automatic
- Force setting Automatic
- Over voltage protection Transformer overload protection
- Operating temperature -30°C bis +55°C
- Limit Switch Electronic
-
Spec
Max door width 5 m - Max door weight 100 kg
- Headroom required min. 35 mm
- Weight 12 Kg
- Memory registers 180
- Radio 433 MHz + 868 MHz
- Further features Soft-Start and Soft-Stop
- MyQ smartphone combatible Yes (optional Internet Gateway 828EV required)
- Safety class TÜV-tested to meet EN12453. For doors up to 100 kg
- Motor warranty 5 Years*
