Hexagonal Spring Anchor Pin to fit Wessex & Ellard garage doors
Available in 2 Different Lengths (please select from the drop-down box the size you require)
Fits many other retractable garage doors.
Pivot arm pin for 7′ to 14′ wide doors using H gear;
80mm overall
48mm (excluding bolt)
Diameter 12mm (M12)
As per Wessex Part: AZSP3419M12
Pivot arm pin for 14′ wide and over doors using XH gear;
105mm overall
60mm (excluding bolt)
Diameter 16mm
As per Wessex Part: AZSP3420

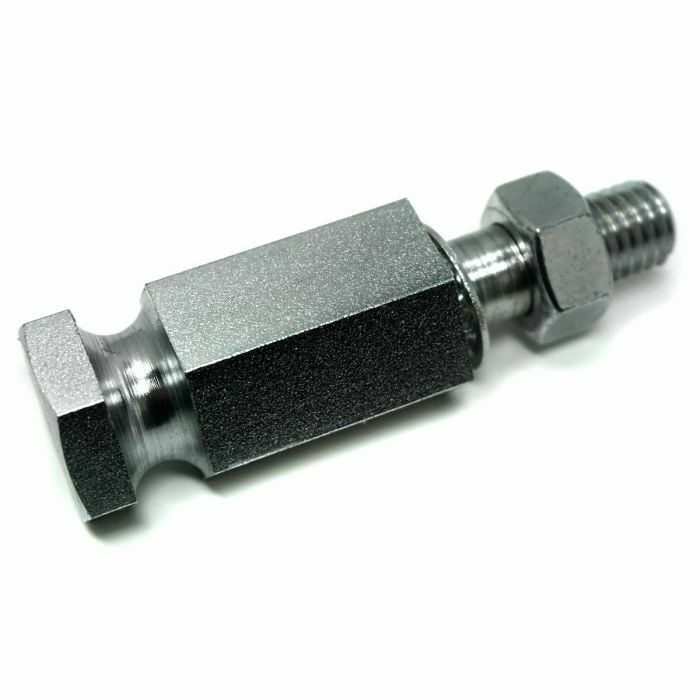

Sold as a single unit (if you require 2, please change the quantity to 2). Supplied as pictured; anchor bolt, nut and locking washer.
