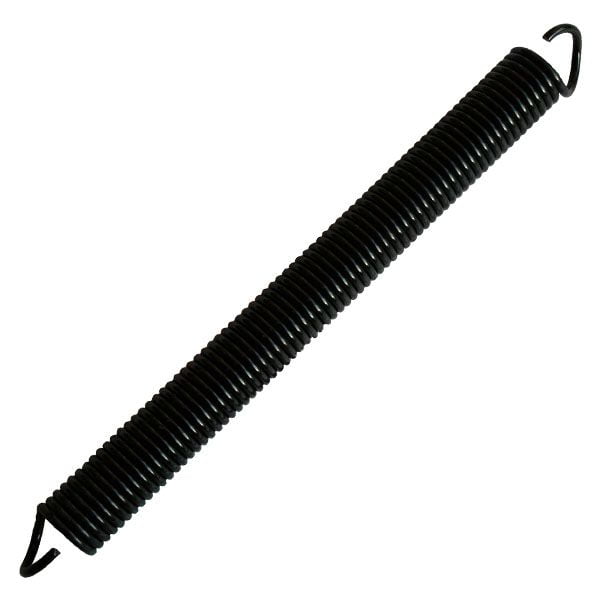

Cardale replacement ‘Blue Spot’ spring fitted to Double width slideaway (retractable) garage doors including; Gemini, Sheraton, Jacobean and Edwardian Steel Doors (14′ x 6’6″ & 14’x7’0″), and GRP doors (10’7″ x 6’6″ / 14’6″ x 7’0″) manufactured before September 1998
The spring is identified by being black with a blue spot at one end of the spring
Suits lifting gear assembly ASZP3201LL & AZSP3201SL
Wire Diameter 6.4mm
Number of Coils 74
Overall Diameter 50mm
Length Excluding Hooks 483mm
When replacing garage springs, it is recommended to replace both springs at the same time, to ensure the spring tension and door remain balanced.
AZSP3302L
